40m3/h Electrocoagulation Wastewater Treatment System 220V-380V

Μεγάλες Εικόνας : 40m3/h Electrocoagulation Wastewater Treatment System 220V-380V

Λεπτομέρειες:

Τόπος καταγωγής:	Σαγκάη, Κίνα
Μάρκα:	ECOPRO

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	$38,627

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Παραγωγικότητα:	40m3/h	Βάρος:	2298 χιλιοστά
Τύπος επεξεργασίας:	Διήθηση	Εξουσία:	3 kW, 30 kW, 20 kW
Δυναμικό:	220 V, 380 V, 110 V	Ικανότητα:	40m3/h
Βάρος ηλεκτροδίου:	11500 κλ	Άδειο βάρος:	3500 kg
Επιχείρηση Βάρος:	31000 κιλά	Χωρητικότητα:	1m3/h
Κατανάλωση ενέργειας:	3kW/h	Διάσταση:	10006501500 mm
Βάρος ηλεκτροδίου:	650 kg	Άδειο βάρος:	400 κιλά
Επιχείρηση Βάρος:	1500 κιλά
Επισημαίνω:	40m3/h electrocoagulation wastewater system , electrocoagulation wastewater treatment 220V-380V , industrial electrocoagulation system with warranty

Industrial Laundry Water Treatment Electrocoagulation Wastewater Treatment Equipment

Electrocoagulation Equipment Electrocoagulator Electrocoagulation Water Treatment

Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.

Technical Specifications

Treating Capacity	1m3/h
Power Consumption	3kw/h
Dimension	10006501500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe2++2e

Anodizing reaction: 2OH-→2[O]+2e→O2+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.

Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide adaptability of power supply: 220V-480VAC range is available.

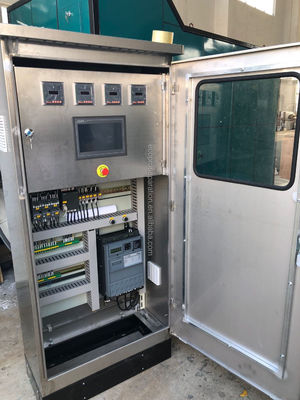

Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.).
Automatic control: can automatically detect the ion state in the water to adjust the current, voltage.
Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.

Company Introduction

Shanghai Ecopro Environmental Engineering Co.Ltd., the flagship company was established in 2017, focuses on one-stop Water & Wastewater treatment equipments and Separation Service Environment. As a professional environmental engineering company, since its inception, we always adhere to the spirit of craftsmanship, to provide the industry with equipment and services and systematic solutions. Our products include static screen, rotary drum screen, polymer dosing system, DAF system, electrochemistry system, screw press, plate filter press, sludge dryer, Mutag Biochip, sodium hypochlorite generator and different kinds of pumps.
