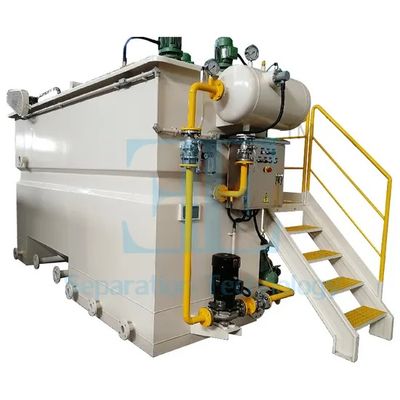

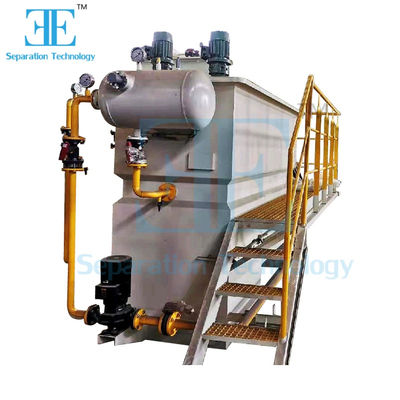

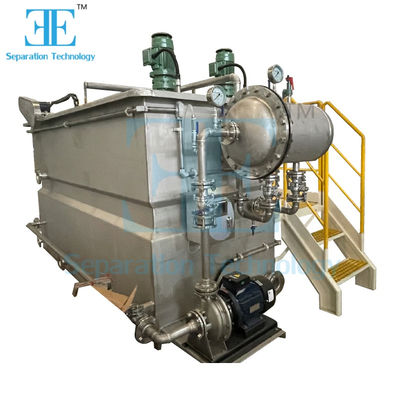

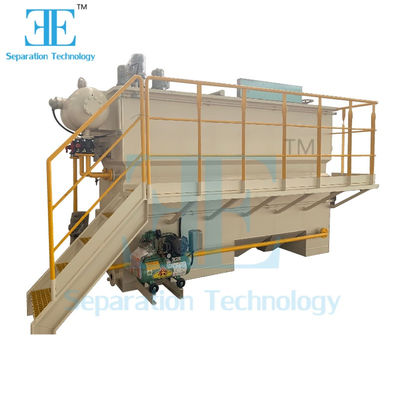

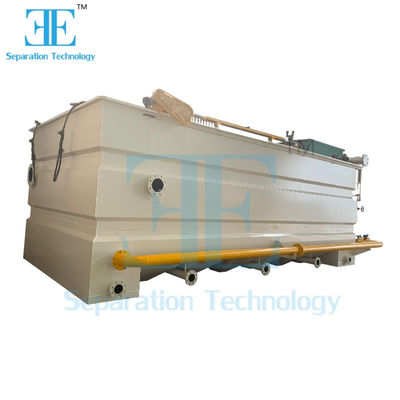

360017001850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment

Name: 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment
Brand: Shanghai Ecopro Environmental Engineering Co., Ltd.
Price: 13608 USD
Availability: InStock

Μεγάλες Εικόνας : 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment

Λεπτομέρειες:

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	13608

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Μοντέλο αρ.:	Δάση	Ικανότητα:	5m3/h
Αεροσυμπιεστής:	0,55kW	Δύναμη αντλίας σε διάλυση:	3kW
Δύναμη σκίμερ:	0,1 kW	Δύναμη αναστάτωσης της πήξης:	0,55kW
Δύναμη αναμειγνυτής κοκκώματος:	0,55kW	Ισχύς αναδευτήρα pH:	0,55kW
Διαστάσεις:	360017001850mm	Παραγωγική ικανότητα:	100000/WEEK
Περιεχόμενο SS:	ppm ή mg/l	Περιεχόμενο πετρελαίου:	ppm ή mg/l
Εύρος pH:	6 ~ 9	Περιεχόμενο BOD:	ppm ή mg/l
Περιεχόμενο COD:	ppm ή mg/l
Επισημαίνω:	360017001850mm Specification DAF System , 0.1kw Skimmer DAF System , 0.55kw Coagulate Agitator DAF System

Dissolved Air Flotation (DAF) Machine for Paper Making Industrial Wastewater Treatment

DAF System Introduction

The Dissolved Air Flotation system is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. This is achieved by dissolving air in the water under pressure and then releasing it at atmospheric pressure in a flotation tank. The released air forms microbubbles that adhere to suspended particles, causing them to float to the surface where they can be removed by a skimming device.

DAF System Work Process

Wastewater enters coagulation (RT1) and flocculation (RT2) reaction tanks from the equalization tank
Water coagulates with PAC and flocculates with PAM to form flocs
Wastewater and dissolved water enter the DAF tank reaction zone
Microbubbles and flocs combine to form low-density particles that float to the surface
Scum is scraped to the slag tank while clean water collects below
Most water is discharged while a portion recirculates to form dissolved water

DAF System Fabrication Process

Technical Data

DAF System Features

Microbubble generation technology
Subsurface capture mechanism
Automatic slagging controlled by liquid level
Non-clogging release with high efficiency

Applications

Municipal sewage treatment
Slaughter house wastewater
Metallurgical industry wastewater
Spraying sewage
Printing & dyeing sewage
Metal-processing sewage
Mining stone wastewater
Electronic sewage treatment

Model Selection Criteria

To select the appropriate DAF system model, consider these factors:

Wastewater type (dairy, car washing, slaughter house, food processing, etc.)
Suspended solids content (ppm or mg/L)
Oil, grease, fat, and FOG content (ppm or mg/L)
pH level (6-9 preferred; corrosive substances may require special materials)
BOD and COD levels (ppm or mg/L)

Packaging Information
