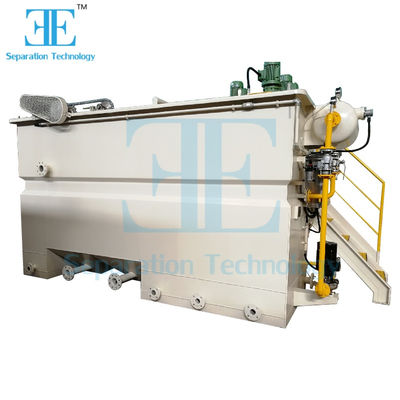

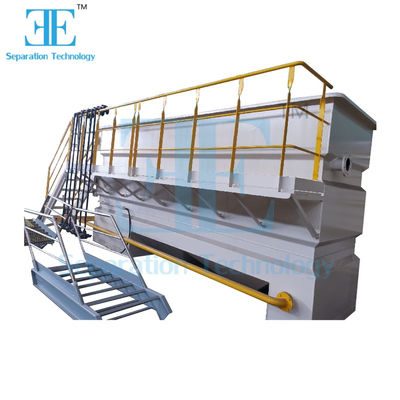

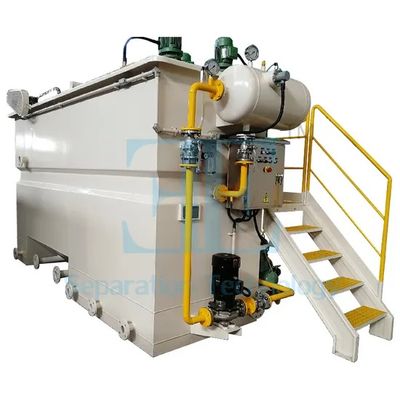

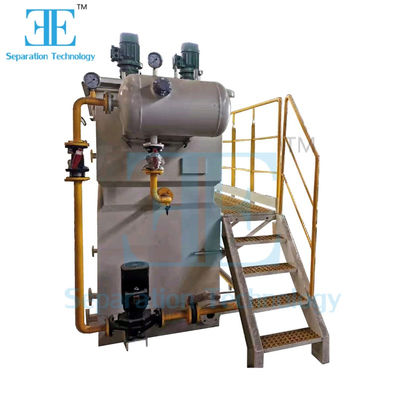

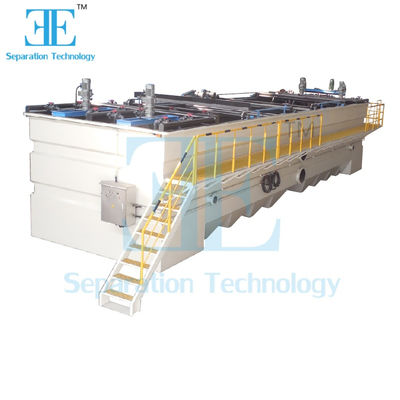

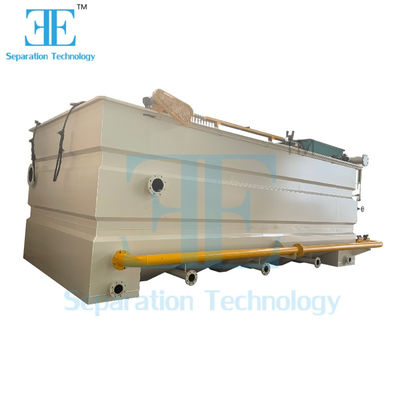

200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 1760038002720 mm Dimensions and 18500 Kgs Weight

Name: 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight
Brand: Shanghai Ecopro Environmental Engineering Co., Ltd.
Price: 22968 USD
Availability: InStock

200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

Μεγάλες Εικόνας : 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

Λεπτομέρειες:

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	22968

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Μοντέλο αρ.:	Δάση	Χωρητικότητα:	200 m3/h
Διάσταση:	1760038002720 χλστ	Βάρος:	18500 κιλά
Παραγωγική ικανότητα:	1000 σύνολα/έτος	Περιεχόμενο SS:	ppm ή mg/l
Περιεχόμενο πετρελαίου:	ppm ή mg/l	Περιεκτικότητα σε γράσο:	ppm ή mg/l
Περιεκτικότητα σε λιπαρά:	ppm ή mg/l	Περιεχόμενο ΟΜΙΧΛΗΣ:	ppm ή mg/l
Εύρος pH:	6 ~ 9	Περιεχόμενο BOD:	ppm ή mg/l
Περιεχόμενο COD:	ppm ή mg/l	Μικροφυσαλίδες:	Δημιουργία
Αυτοματοποιημένη απομόνωση:	Ελεγχόμενη στάθμη υγρού
Επισημαίνω:	200 M3/H Dissolved Air Flotation , 1760038002720 mm DAF System , 18500 Kgs Wastewater Treatment System

Ecopro Sewage Treatment Units Landscape Water Purification System Sedimentation DAF Dissolved Air Flotation Tank

DAF System and Dissolved Air Flotation for Waste Water Treatment

Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. The process involves dissolving air in the water under pressure and releasing it at atmospheric pressure in a flotation tank, creating microbubbles that adhere to suspended particles, causing them to float to the surface for removal.

DAF System Work Process

Wastewater enters RT1 (coagulation reaction tank) and RT2 (flocculation reaction tank) from the equalization tank through a lift pump, coagulating with PAC and flocculating with PAM to form flocs.
The wastewater and dissolved water enter the reaction zone of the DAF tank where microbubbles adhere to flocs, forming solid particles with density less than water.
These particles float to the surface where scum is scraped to the slag tank.
Clean water is collected through the water collecting pipe, with most discharged and a small portion recirculated to form dissolved water.

DAF System Fabrication Process

Technical Data

DAF System Features

Microbubbles generating system
Subsurface capture technology
Automatic slagging controlled by liquid level
Non-clogging releasing with high efficiency

Application of DAF System

Municipal Sewage
Slaughter House wastewater
Metallurgical Industry Wastewater
Spraying Sewage
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage

How to Select the Right Model

Consider these factors when selecting a DAF system:

Wastewater type (dairy, car washing, slaughter house, food processing, river water, etc.)
SS content (ppm or mg/L)
Oil & Grease & Fat (FOG) content (ppm or mg/L)
PH level (6-9 preferred; consider PH adjustment tank for corrosive substances)
BOD and COD levels (ppm or mg/L)

Packaging Options
